GM 14 Bolt 10.5 SRW Disc Brake Conversion Brackets Kit Uses Super Duty Calipers

Frank's Fab & Machine Exclusive!

Early 14 Bolt Full Float 10.5" Disc Brake Conversion Brackets. Ditch you heavy expensive drums

The GM 14 bolt Full float axle is found in the Chevy and GMC C20 and K20 pickups form 1973-1988.

The 73-88 axles can be identified by smooth non-ribbed housing.

This kit fits 73-88 Single rear wheel smooth axles only

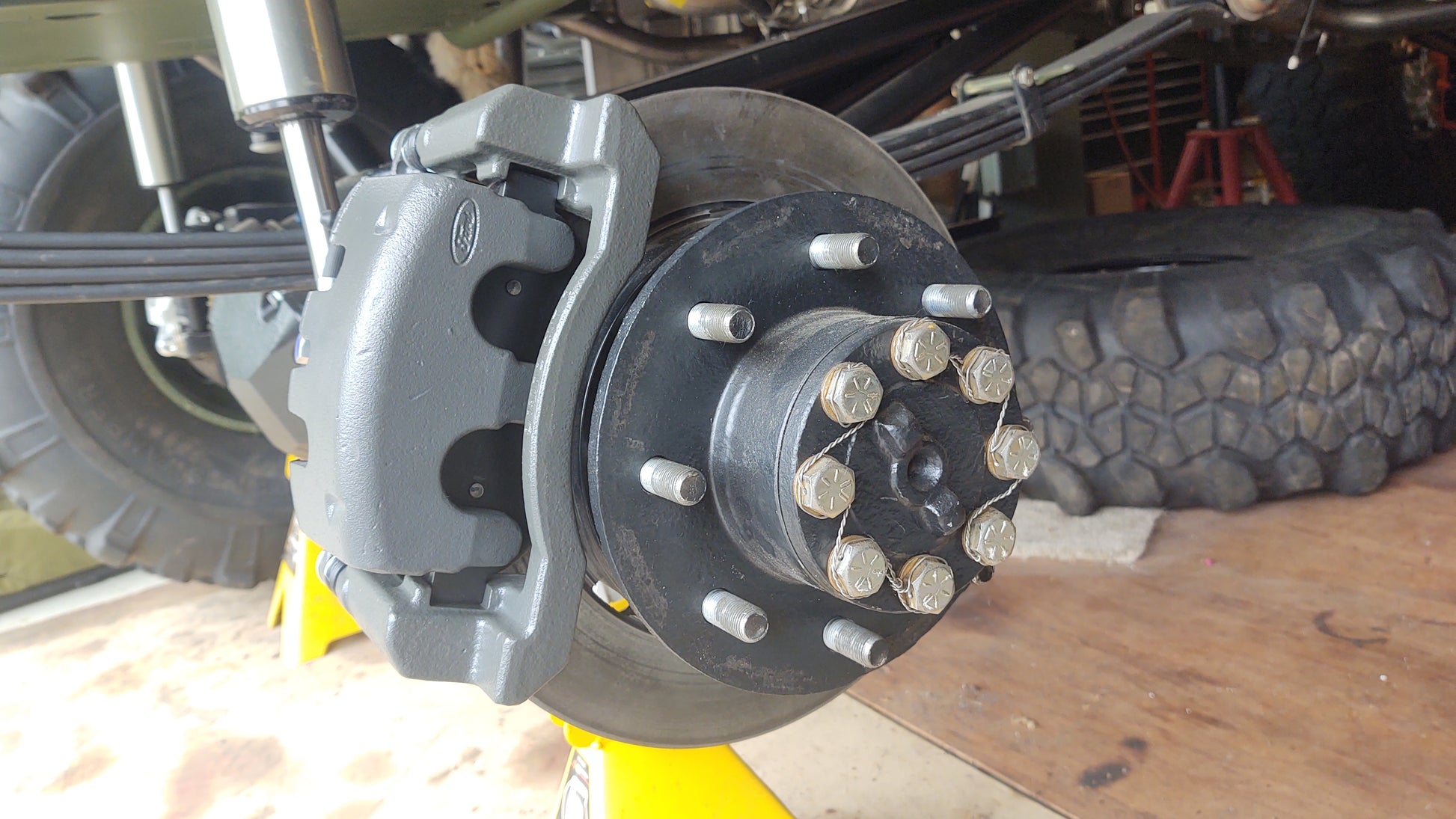

To complete this kit you will need to purchase 05-13 Ford Super Duty calipers and 1971-89 K20 4wd Front Rotors.

See my other listings for a SRW kit that uses Late model GM calipers and a kit for the Dually axles.

These ship powdercoated satin black and include all bolts needed for install.

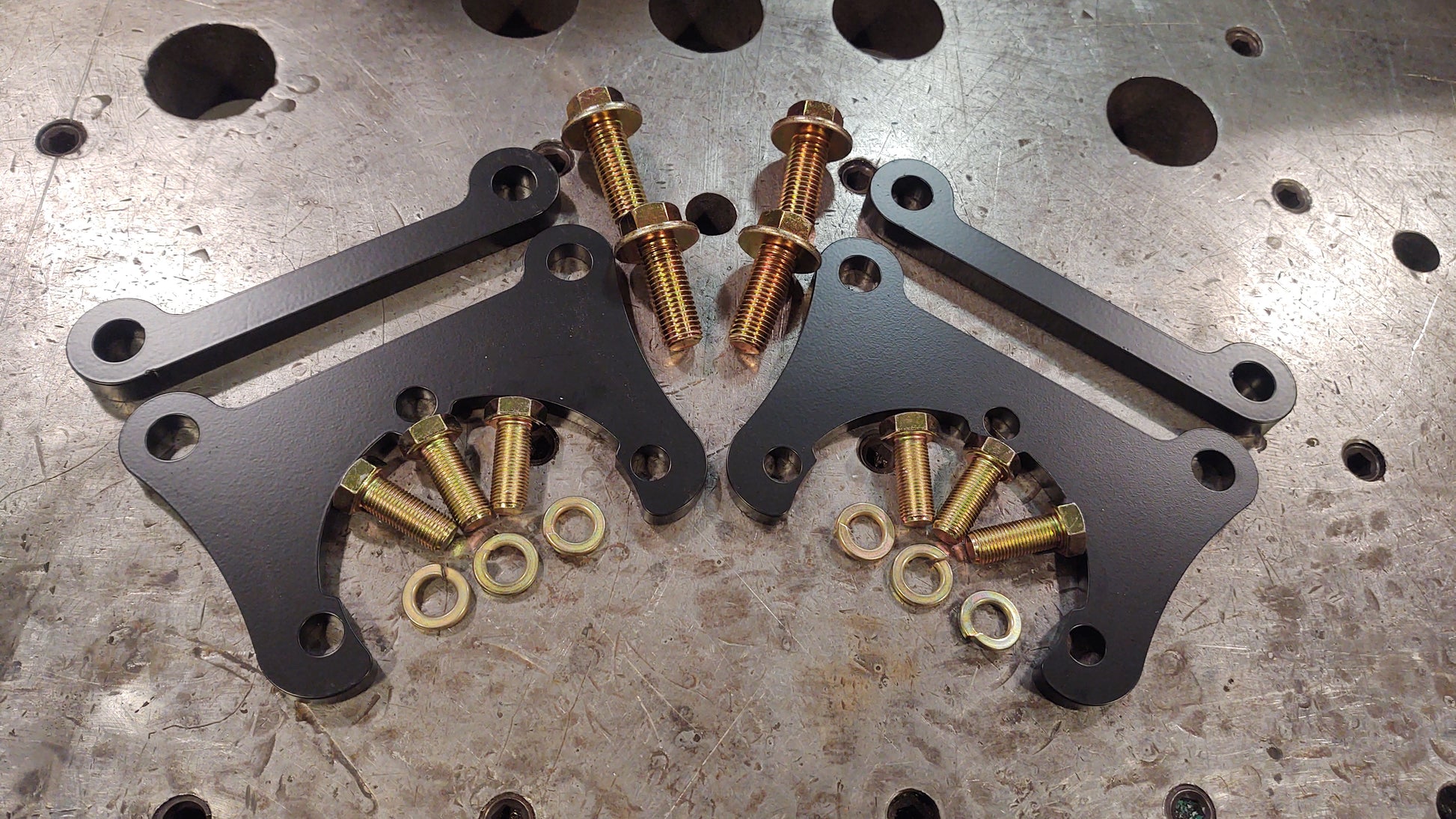

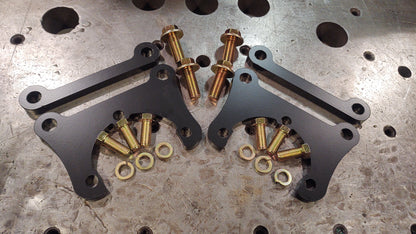

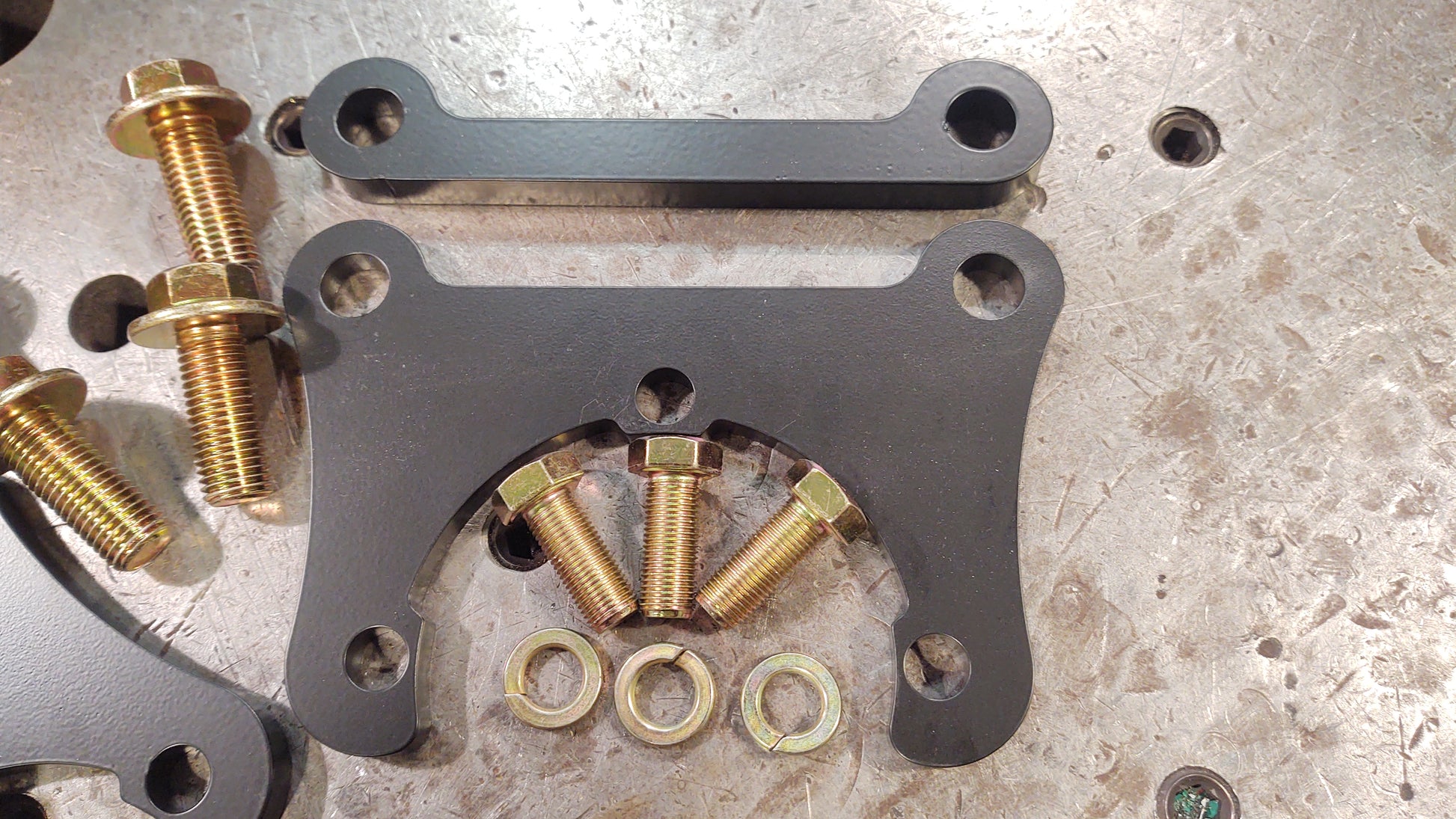

These are comprised of 2 parts, the main mounting bracket and a spacer plate. The parts are laser cut from 3/8" & 1/2" plate. They require no cutting, welding or drilling for install.  Include is a list of part numbers with vehicle applications for all of the parts you need to complete the conversion.

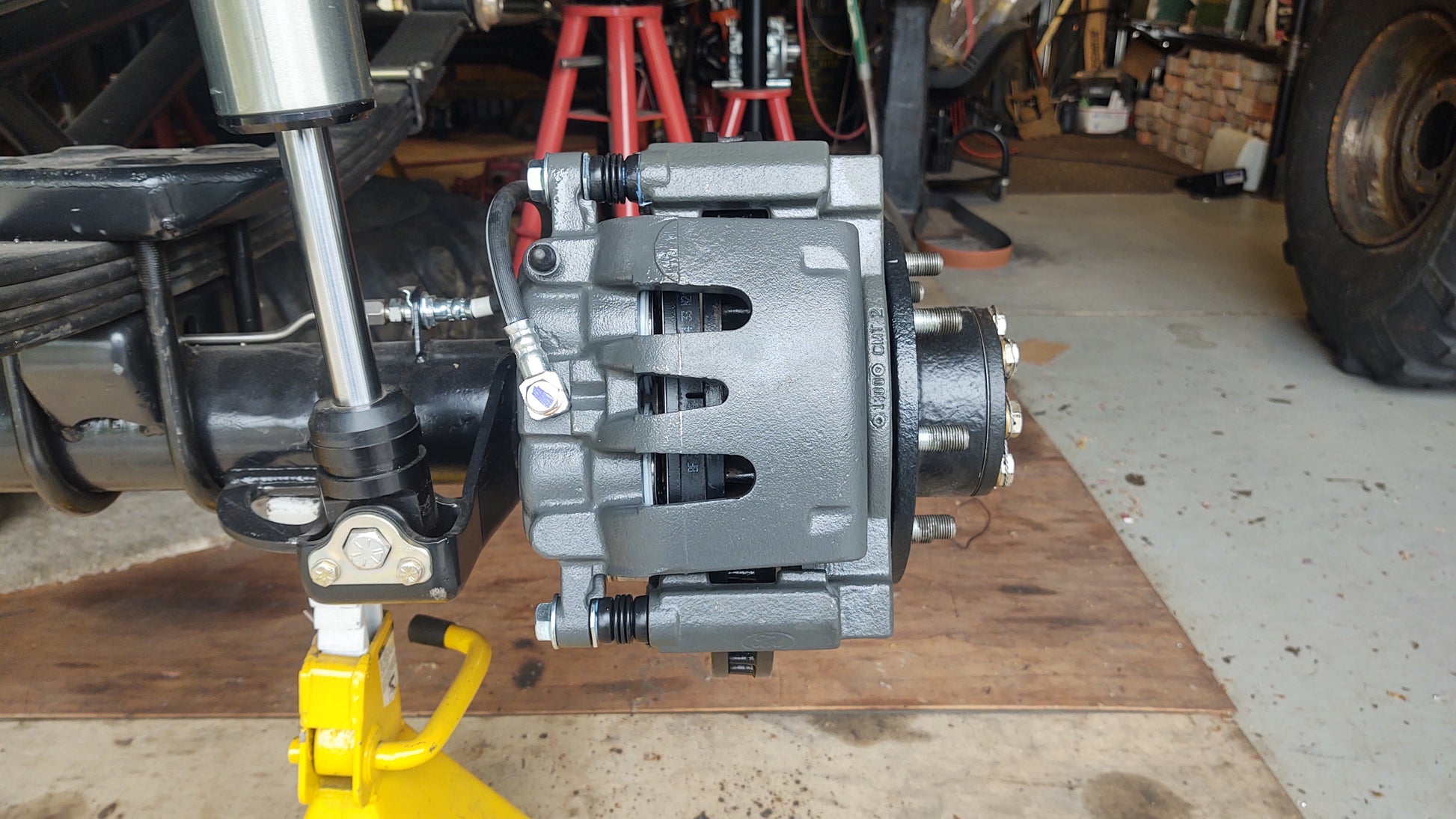

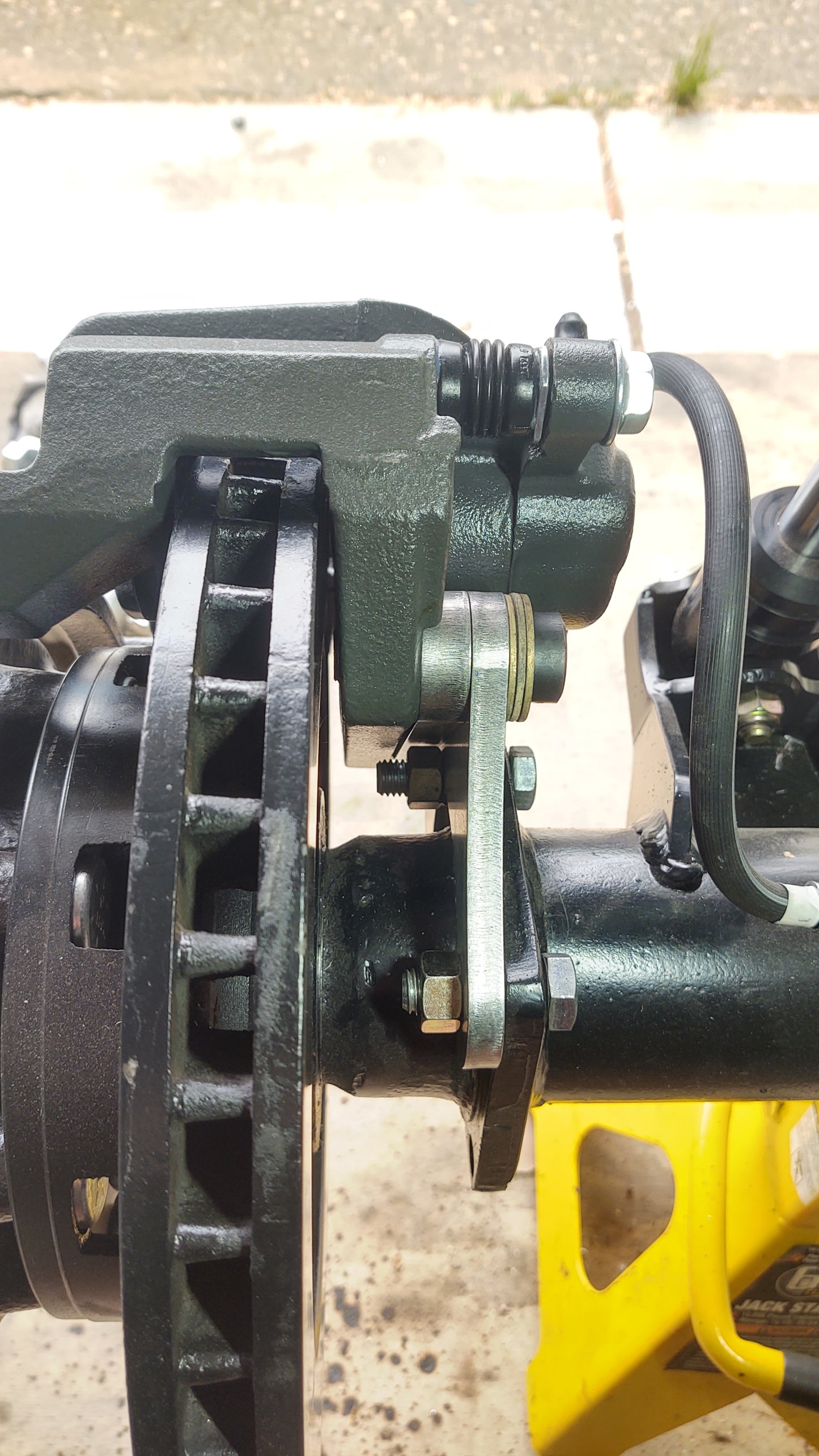

This kit is nice if you are running a 05+ Super Duty 60 front axle swap. This way the rear brakes will match the front axle donor truck. They are a 2 piston design with a similar area to the large single piston older GM calipers. These are much newer, quite common, readily available in salvage yards and relatively inexpensive at the auto parts, have a far better slide design and most of all look much better on a high end build.

For Off road use only.
