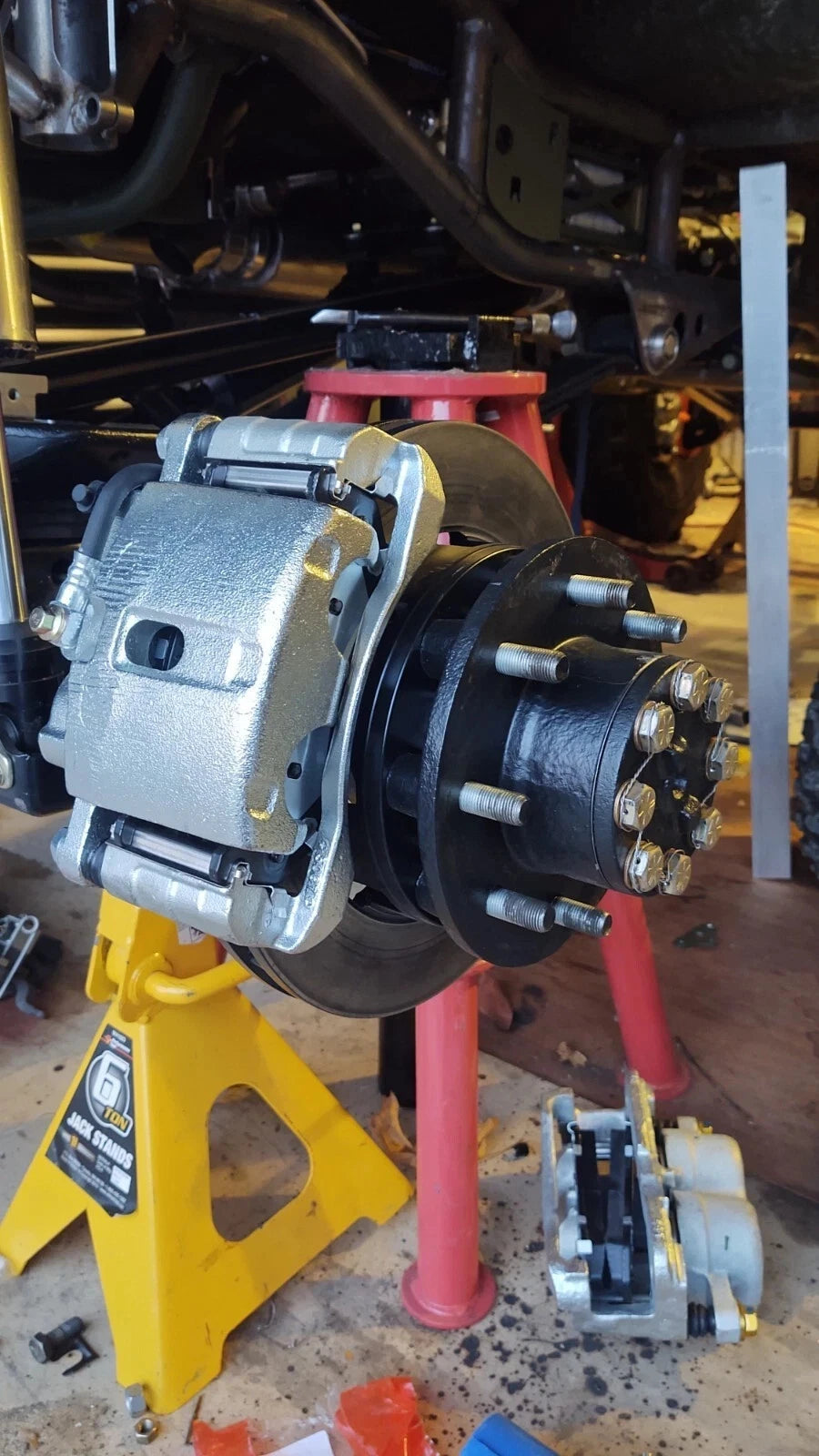

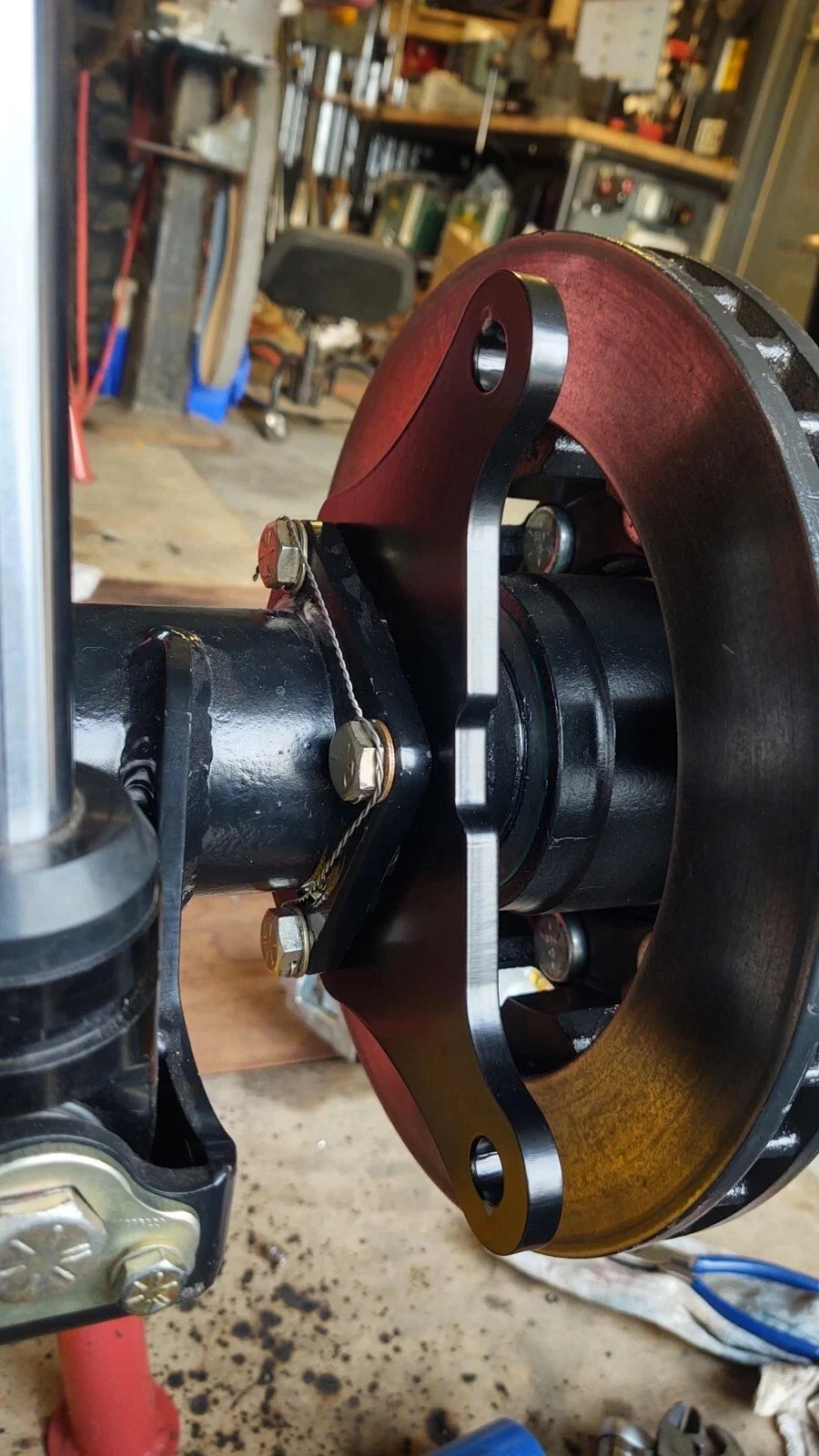

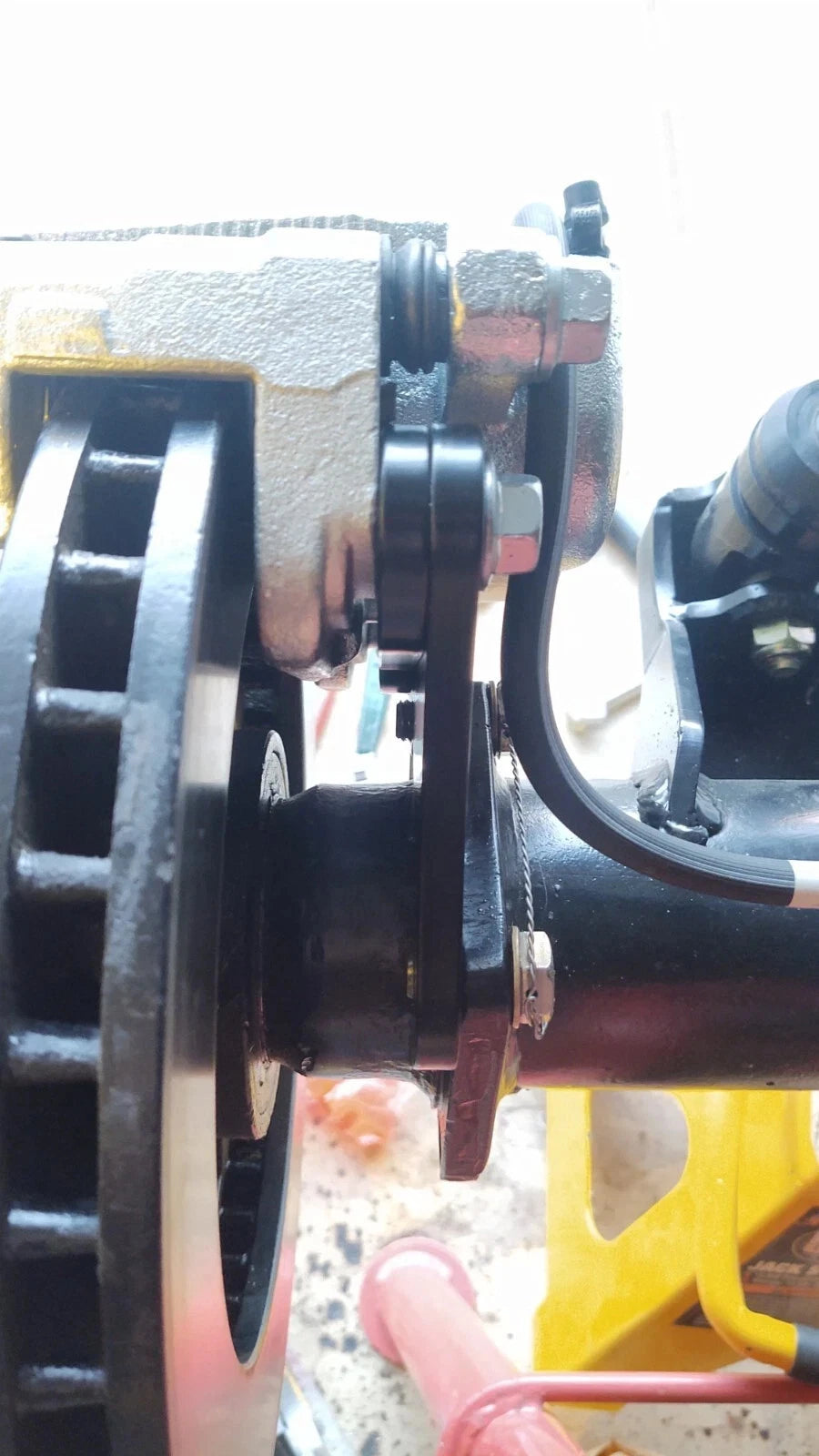

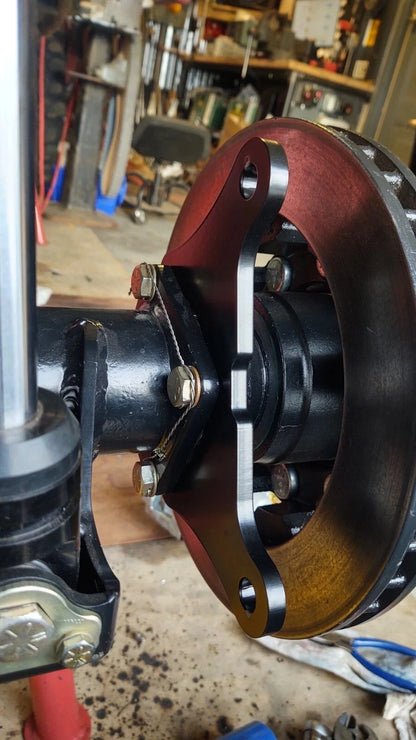

GM 14 Bolt 10.5 SRW Disc Brake Conversion Bracket Kit Uses New style GM Caliper

Frank's Fab & Machine Exclusive!

Early 14 Bolt Full Float 10.5" Disc Brake Conversion Brackets using New Style 2 Piston GM Calipers.

Ditch you heavy expensive drums

This kit fits 73-88 Single rear wheel smooth axles only

The GM 14 bolt Full float axle is found in the Chevy and GMC C20 and K20 pickups form 1973-1988.

The 73-88 axles can be identified by smooth non-ribbed housing.

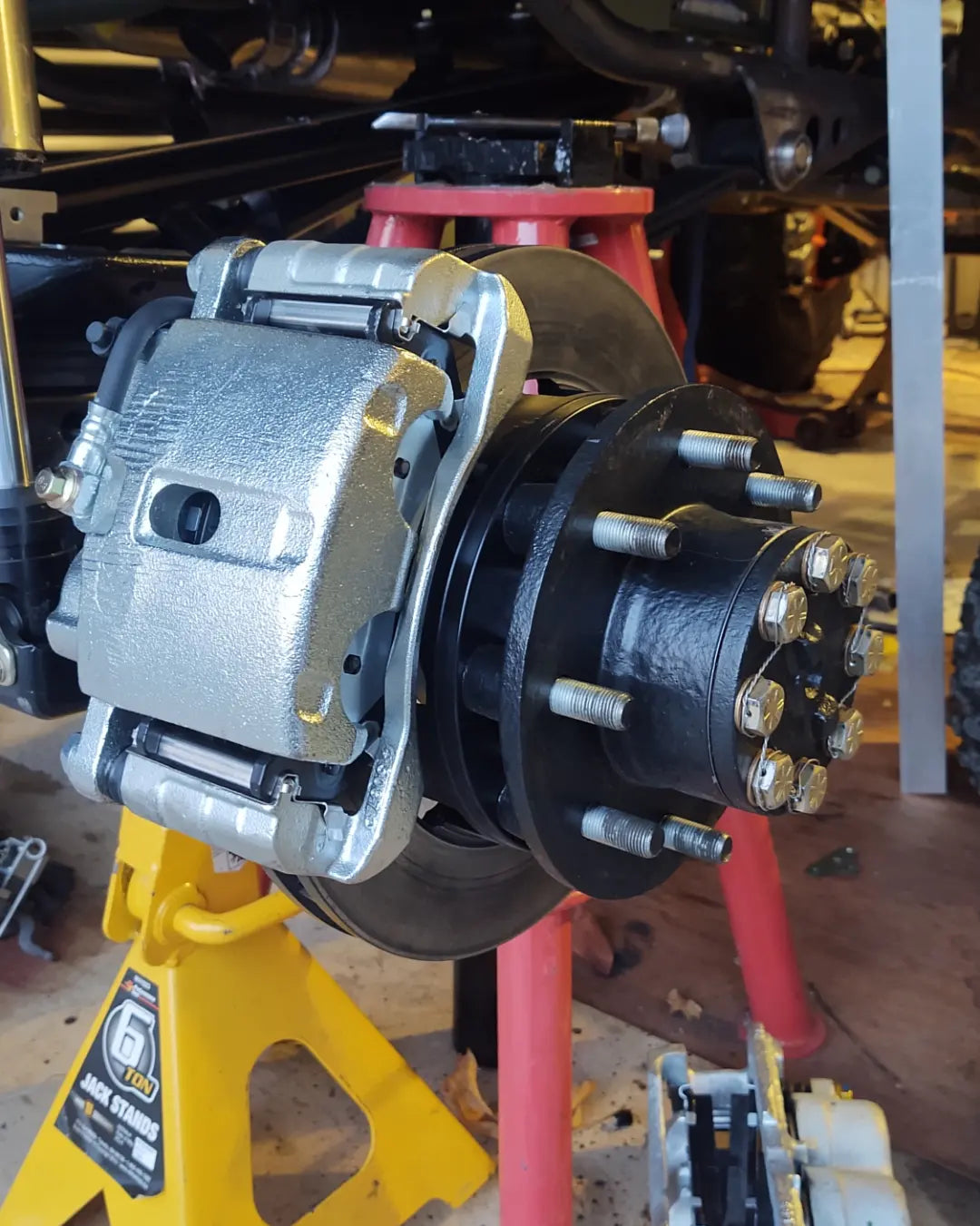

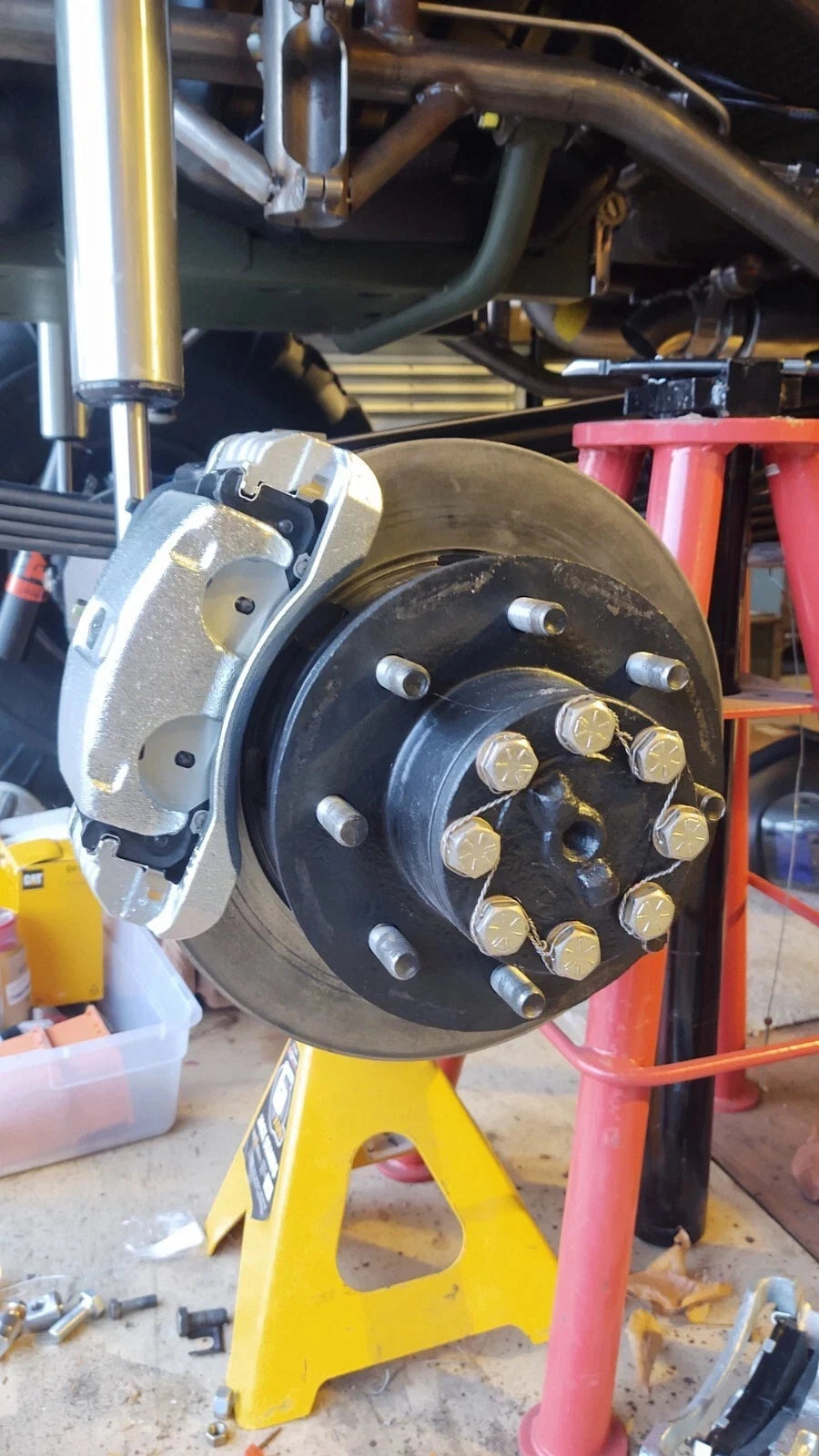

To complete this kit you will need to purchase 1971-89 Chevy K20 Front Rotors and GM calipers from a 2000-2010 2500 Silverado Rear, 1500 Silverado Front, and some vans. (You will receive a complete list with your parts) They are a 2 piston design with a similar area to the large single piston older models. These are much newer, quite common, readily available in salvage yards and relatively inexpensive at the auto parts, have a far better slide design and most of all look much better on a high end build.

See my other listings for a DRW,Dually kit that uses Late model GM calipers

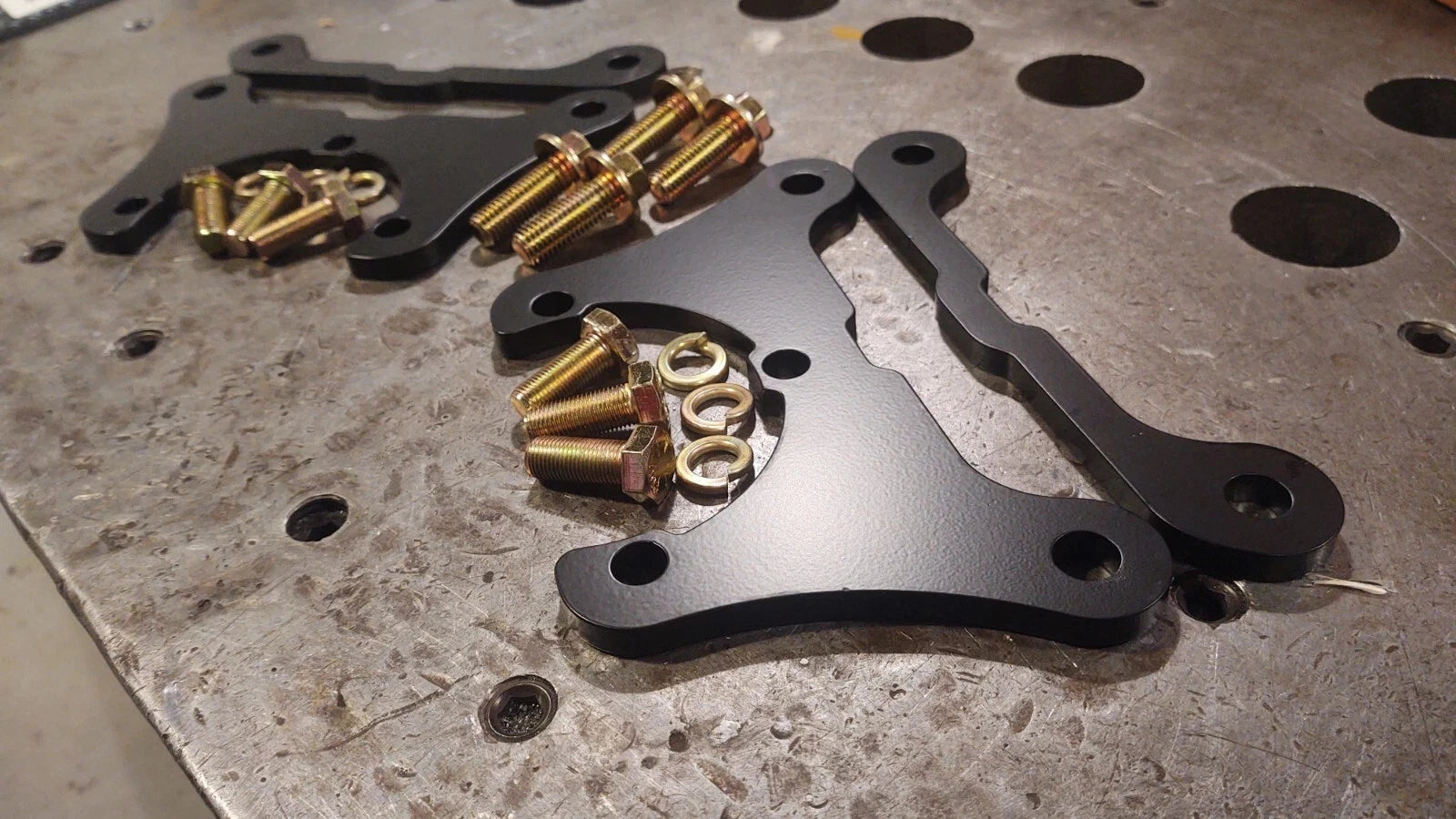

These ship powdercoated satin black and include all bolts needed for install.

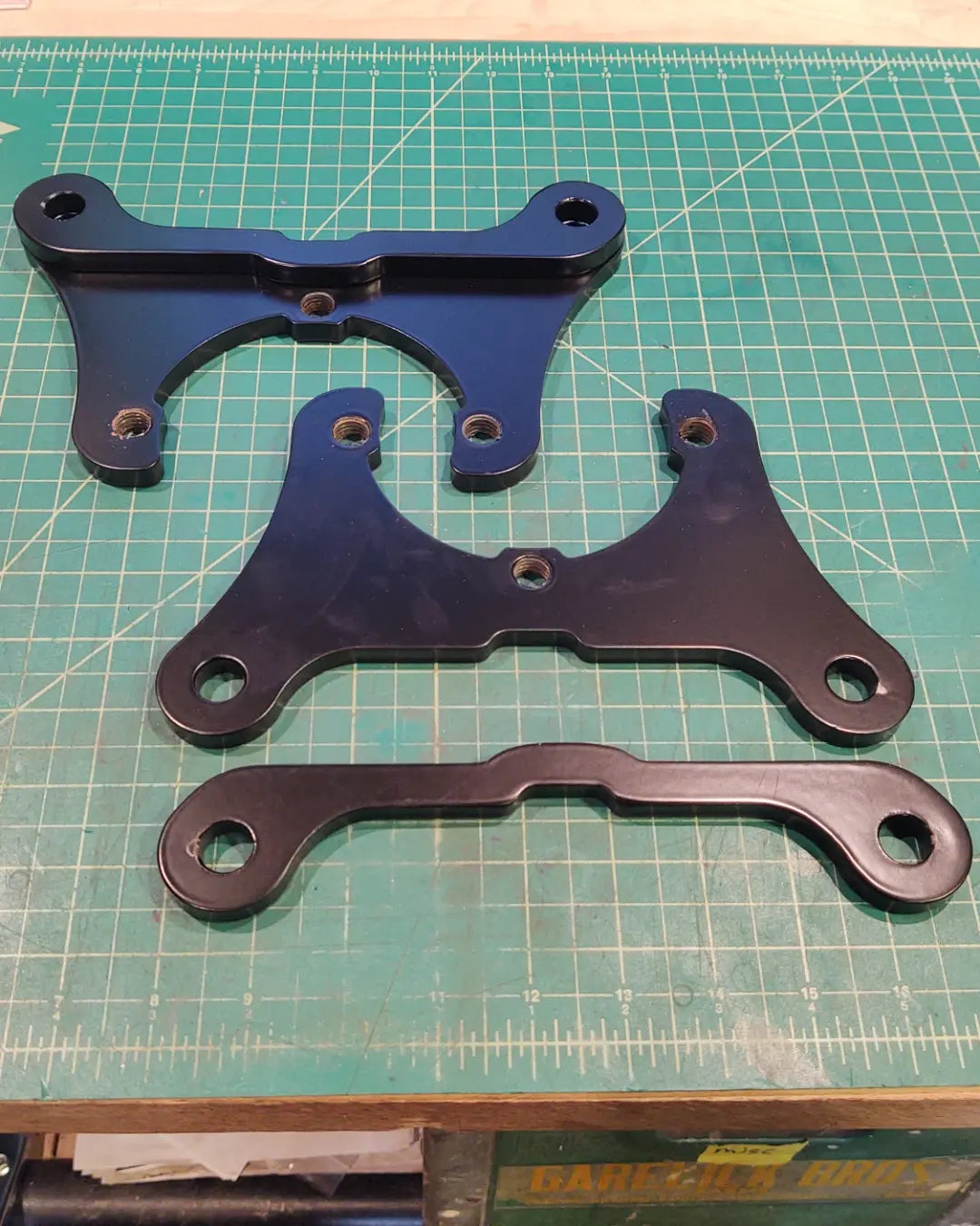

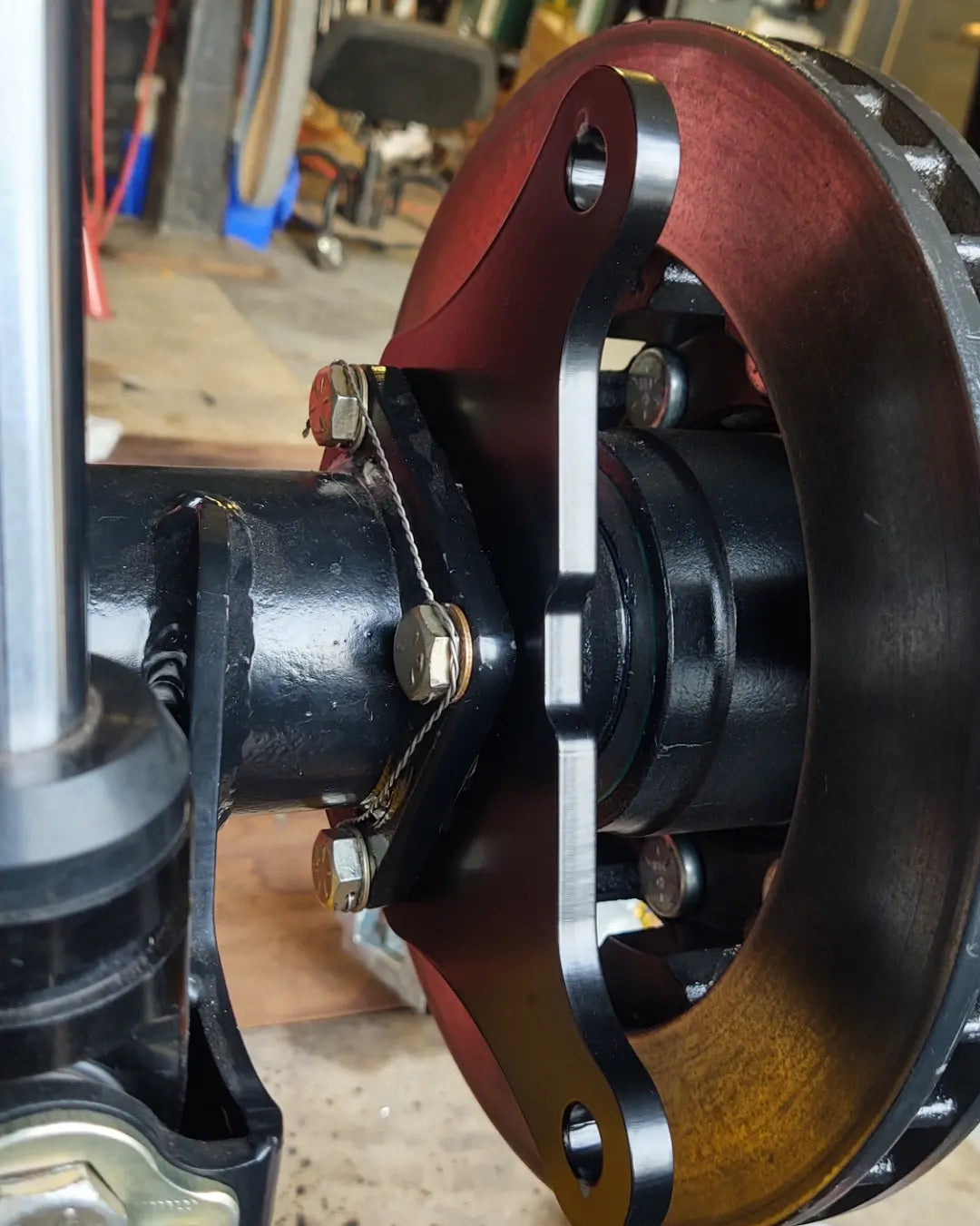

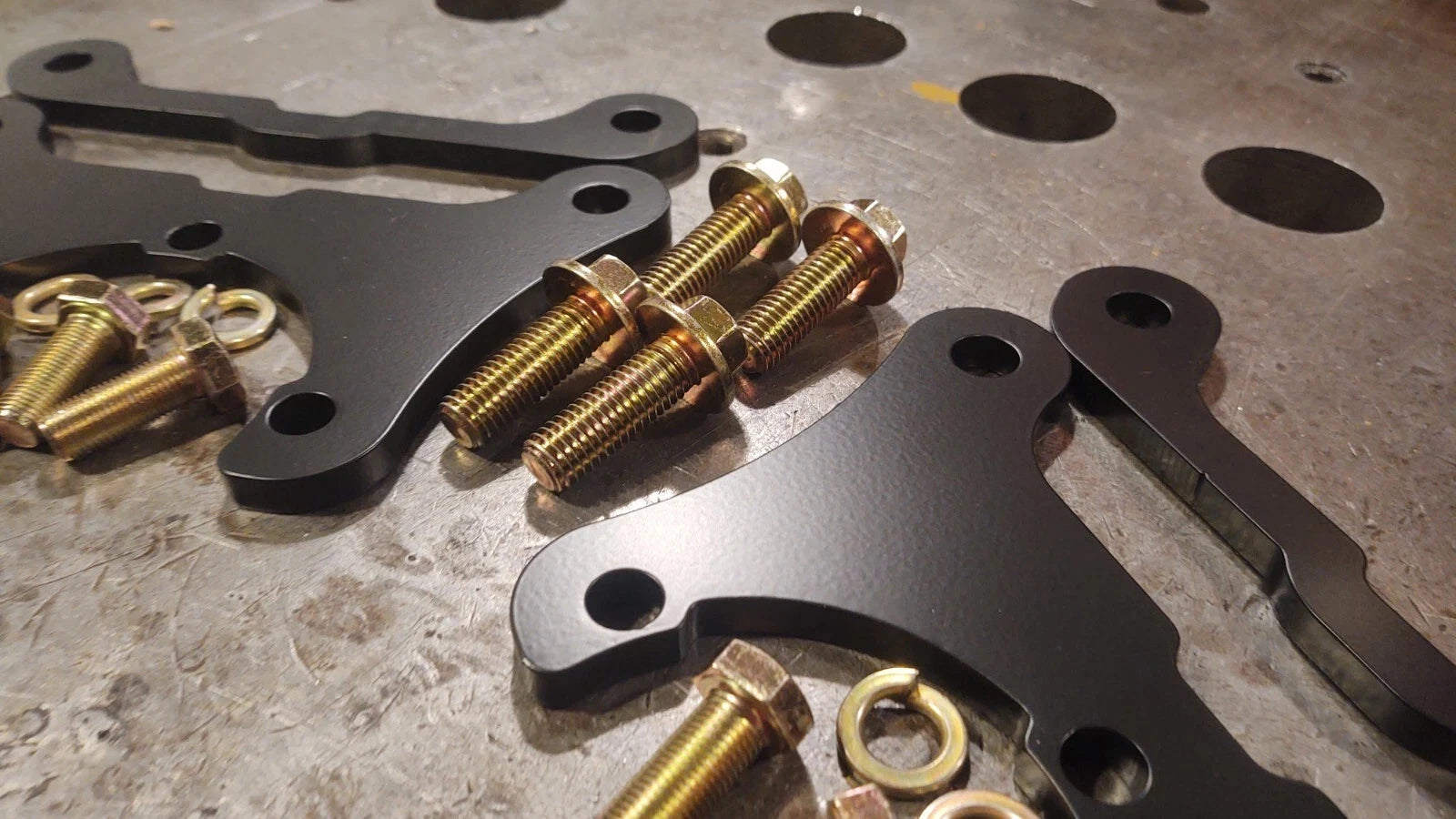

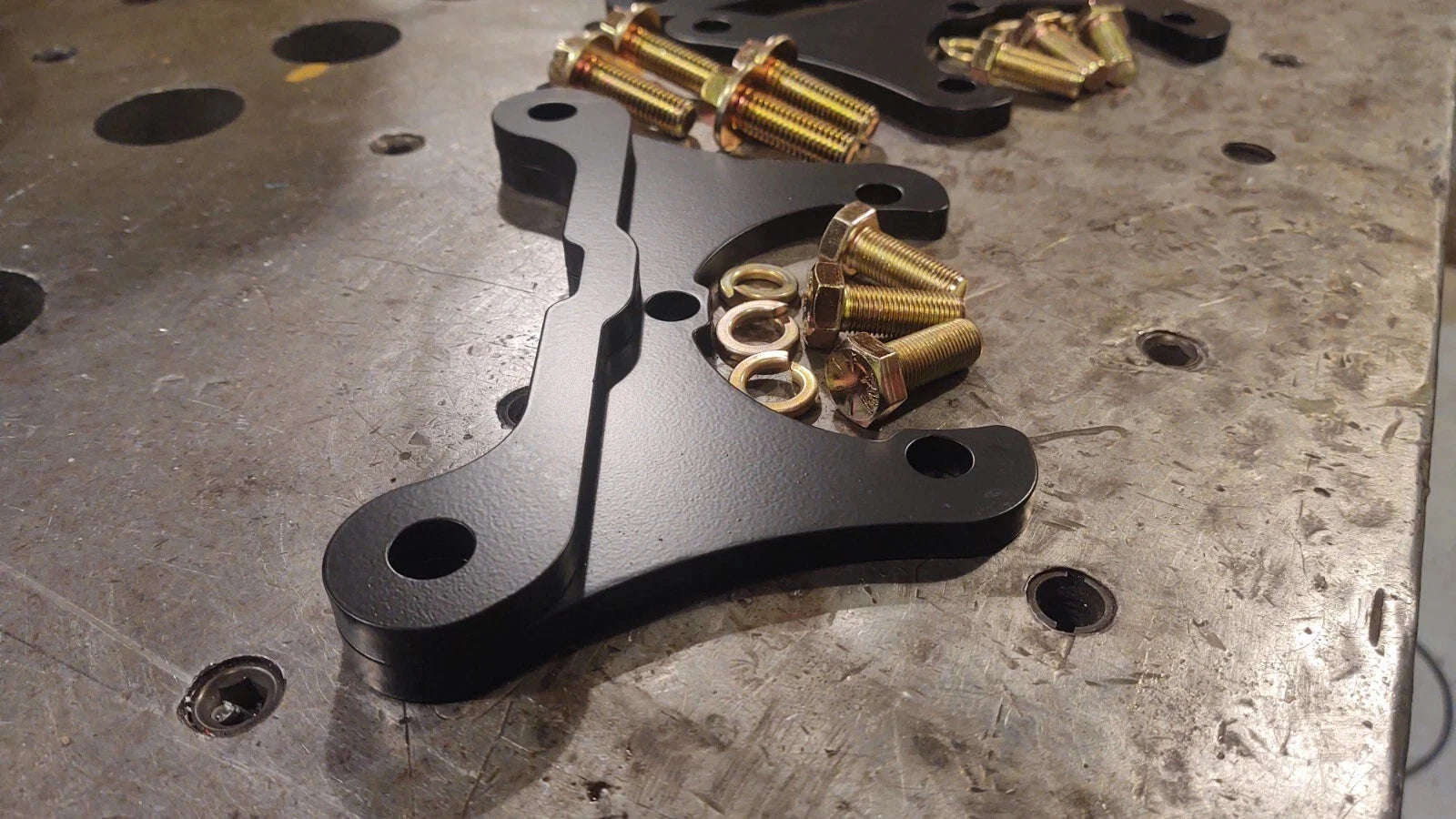

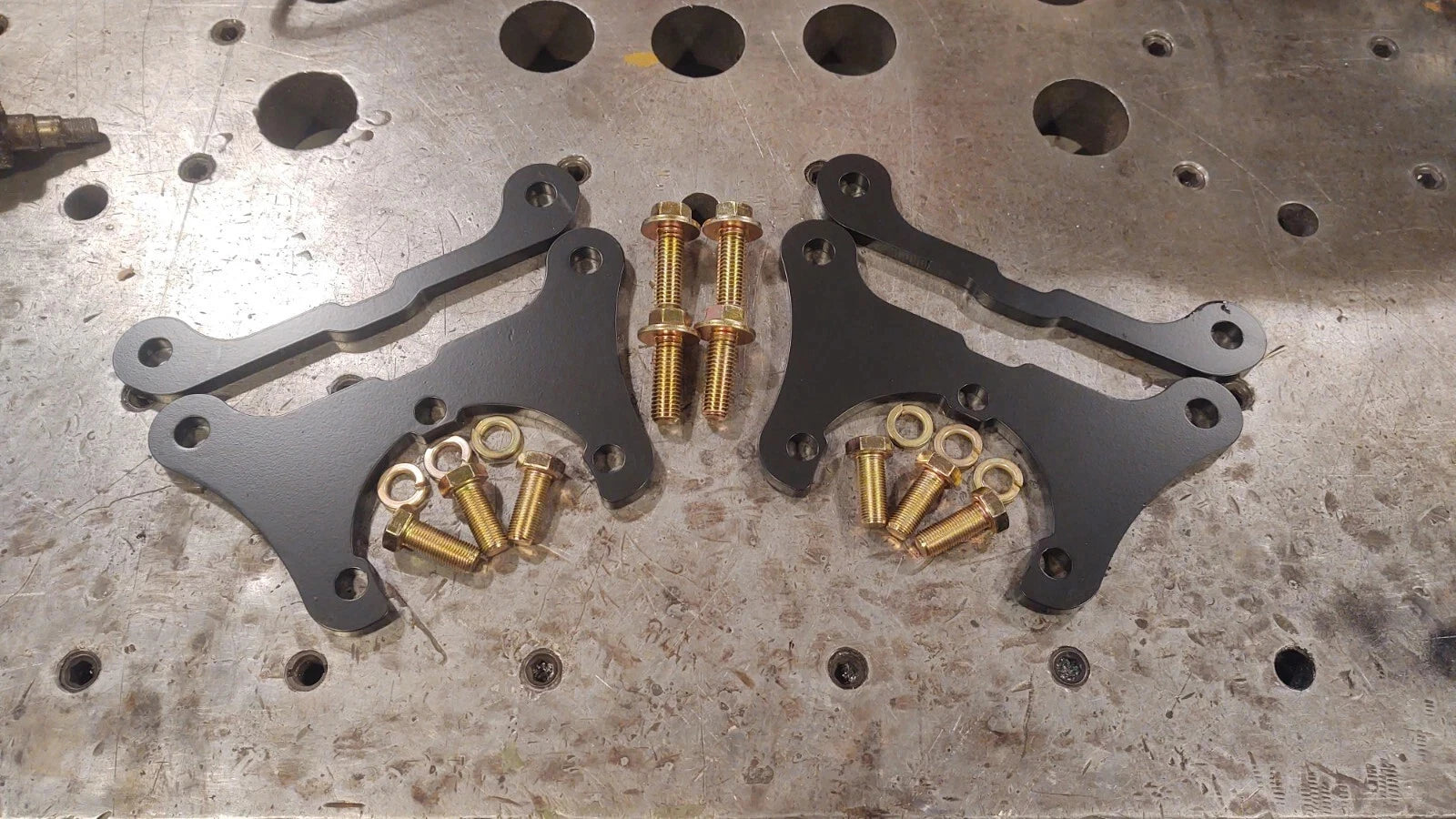

This kit Includes all mounting hardware and is comprised of 2 parts, the main mounting bracket and a spacer plate. The parts are laser cut from 3/8" & 1/2" plate. They require no cutting, welding or drilling for install.  Included is a list of part numbers with vehicle applications for all of the parts you need to complete the conversion.

For Off road use only.
